7–8S Truck Lithium Battery Protection Board

Designed specifically for 7–8S lithium battery packs, this truck lithium battery protection board features an advanced Battery Management System (BMS) to comprehensively protect battery safety and enhance performance, making it an ideal lithium battery management solution.

Intelligent Battery Management / Low-Temperature Adaptation / Data Services / Portable Operation / Active Balancing

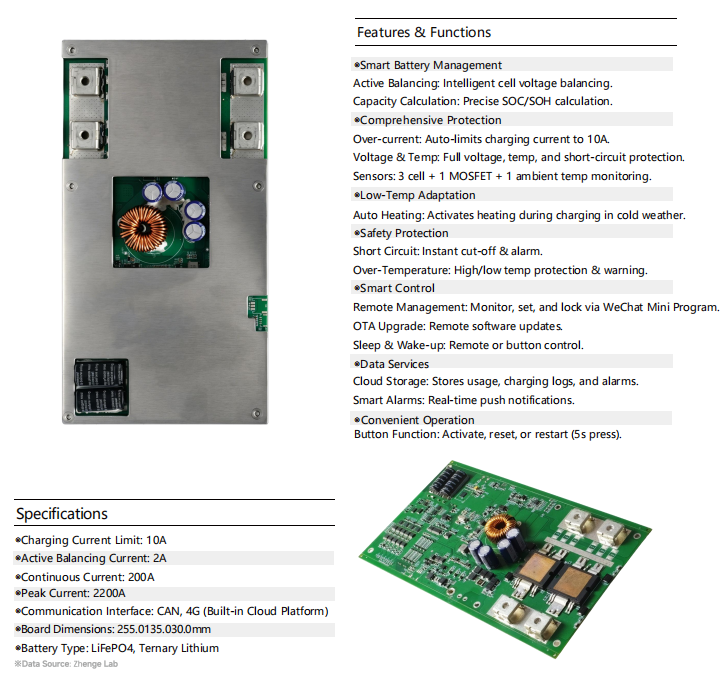

Technical Description:

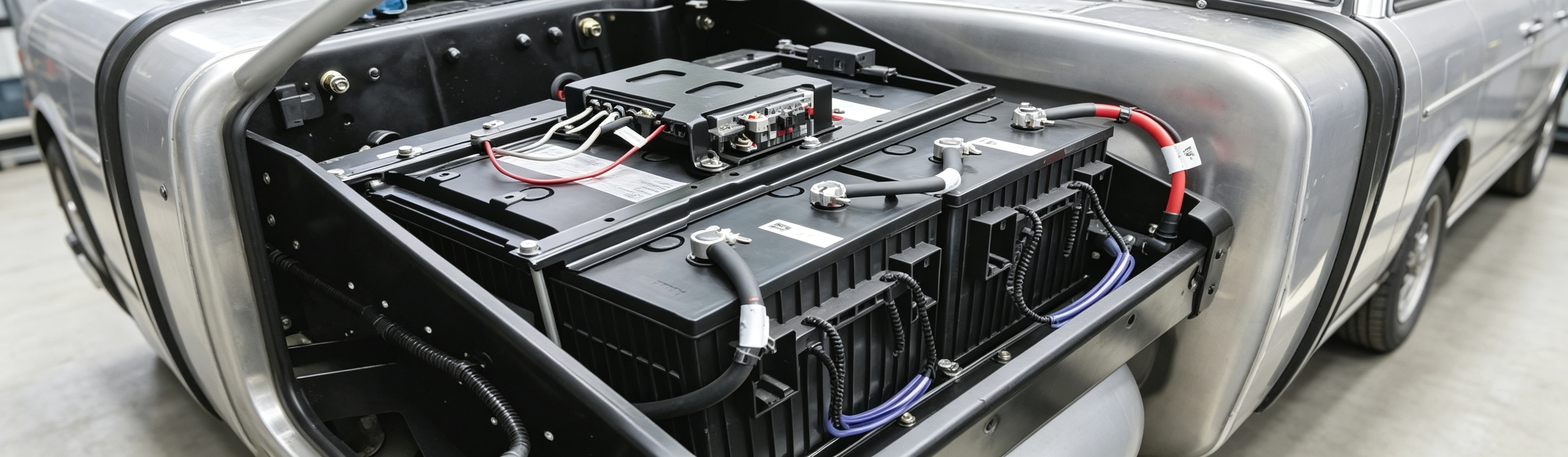

ZB24V-0001 is an intelligent BMS protection board designed for 7–8S (24V) lithium batteries used in truck starting and parking applications. It is compatible with both LiFePO₄ and NMC lithium battery chemistries, providing reliable battery management and protection performance for heavy-duty vehicle applications.

The BMS integrates active balancing technology, which monitors individual cell voltage in real time, intelligently balances energy distribution, and accurately calculates SOC/SOH to improve battery consistency and extend service life.

For charging and discharging protection, ZB24V-0001 supports automatic charging current limiting, reducing the charging current to 10A when overcurrent is detected. It also provides comprehensive monitoring and protection through over-voltage and under-voltage detection, with temperature monitoring including 3 cell temperature channels, 1 MOSFET temperature channel, and 1 ambient temperature channel.

The BMS features low-temperature adaptation technology. During charging in cold environments, the heating function is automatically activated to ensure stable battery operation and improve low-temperature charging performance.

Safety protection functions include instant short-circuit power-off, over-temperature and low-temperature alarms, and charge/discharge temperature protection.

For intelligent management, ZB24V-0001 supports remote monitoring via WeChat Mini Program, parameter configuration, remote battery locking, OTA firmware upgrades, and sleep/wake-up control. With built-in cloud platform support, it enables cloud data storage and intelligent alarm notifications for efficient battery management.

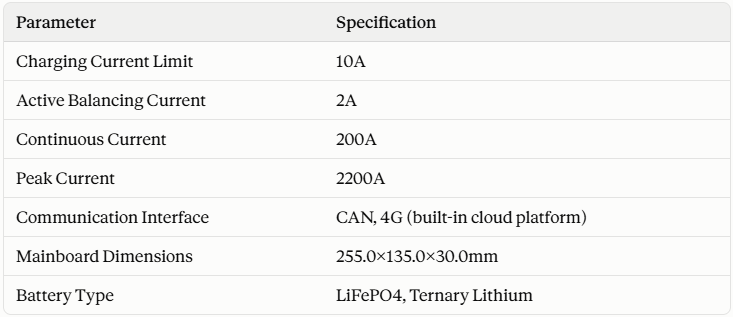

The BMS supports a continuous current of up to 200A, a peak current of 2200A, and an active balancing current of 2A. It features dual communication channels with CAN + 4G connectivity, integrated cloud platform access, and a compact mainboard design with dimensions of 255.0 × 135.0 × 30.0 mm.
