PV-ESS Integrated Bidirectional Inverter
ZS60B-5K0W
GEEKEY 5000W IP67 Marine-Grade Solar Inverter | 50V-73V DC Input | Anti-Corrosion & High Salinity Resistance | for Offshore PV Projects
Rugged 5kW All-in-One Solar Solution Engineered for Extreme Coastal & Island Environments
Marine Grade Inverter | 5000W Solar Inverter | IP67 Waterproof | Anti-Salt Spray | MPPT Solar Charger | Off-Grid Power | OEM/ODM
Product Description：
Product Description:
ZS60B-5K0W is a marine-grade PV-ESS integrated bidirectional inverter, delivering high-quality pure sine wave AC output while also functioning as a high-power fast charger. The unit supports charging from either the grid or solar PV input, with seamless switching between charging and discharging modes.
Designed for demanding coastal and offshore environments, ZS60B-5K0W integrates a high-efficiency MPPT solar charge controller alongside its bidirectional inverter core, enabling stable power conversion whether drawing from AC mains or direct solar input. This dual-source charging capability makes it particularly suited for remote and off-grid marine installations where grid access is unreliable or unavailable.

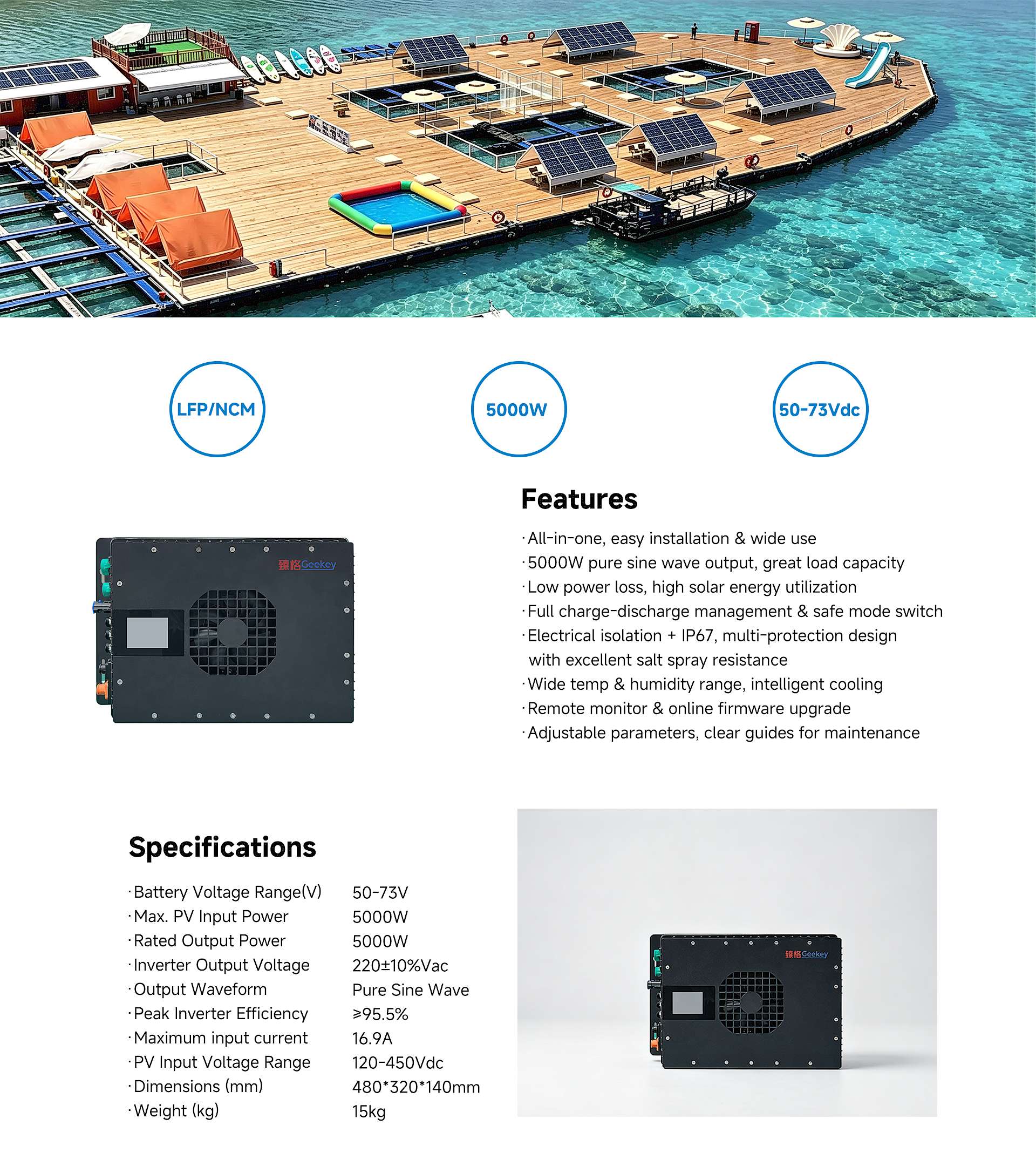

Key Specifications:
• Battery types: Ternary lithium, LiFePO₄, sodium-ion
• Communication interface: RS485
• Dimensions: 480.0 × 320.0 × 140.0mm
• Net weight: 15kg
Inverter parameters:
• DC input voltage range: 50–73VDC
• Output voltage range: 220±10%VAC
• Frequency: 50±1%/60±1%Hz
• Rated power: 5000W
Charging parameters:
• AC input voltage range: 185–250VAC
• Constant current output: 28A (adjustable)
• DC output voltage range: 43–73VDC (configurable)
• Charging power: 2000W
MPPT parameters:
• Maximum open-circuit voltage: 500V
• Operating voltage: 120–450V
• Maximum PV input current: 16.9A
• Maximum solar charging current: 22A
• Number of MPPT trackers: 1
• Input strings per MPPT: 8
• Maximum PV array power: 5000W
Applications:
Suitable for offshore fish farm rafts, residential power, portable mobile power stations, emergency backup (UPS), and large-capacity battery charging, among other scenarios. Compatible with the vast majority of appliances on the market, providing stable and reliable power supply.
