Bidirectional Inverter
ZI60B-3K0W
GEEKEY 3000W Bidirectional Inverter | 43–68V DC Input | LFP/NCM Compatible | for Mobile Carts & Off-Grid Power
High-Efficiency, Compact Inverter for Commercial Mobile Applications – OEM/ODM Available
Bidirectional Inverter | 3000W Pure Sine Wave | 43-68V DC Input | LFP/NCM Battery Compatible | ≥96.8% Efficiency | CE Certified | OEM/ODM
Product Description:
ZI60B-3K0W is a high-power bidirectional inverter that integrates charging and discharging in a single unit, built on Triple Active Bridge (TAB) technology to achieve highly efficient energy conversion. The design ensures excellent system efficiency and stability, meeting the demands of high-voltage, high-power applications across a wide range of AC loads.
The unit achieves a charge/discharge conversion efficiency of up to 96.8%, delivering substantial energy savings. Thermal management is handled through an intelligent cooling fan combined with low-noise convection heat dissipation, ensuring safe and stable operation under sustained high-power output.
ZI60B-3K0W adopts a modular design for easier installation and maintenance, along with full electrical isolation to enhance safety, stability, and interference resistance. Multiple soft-start protection stages and intelligent real-time monitoring work together to ensure reliable, continuous operation.
The product design references the following standards: IEC/EN 62477-1, GB/T 17626.2-2018, IEC 60730-1:2022, and EN 61000-4 series.

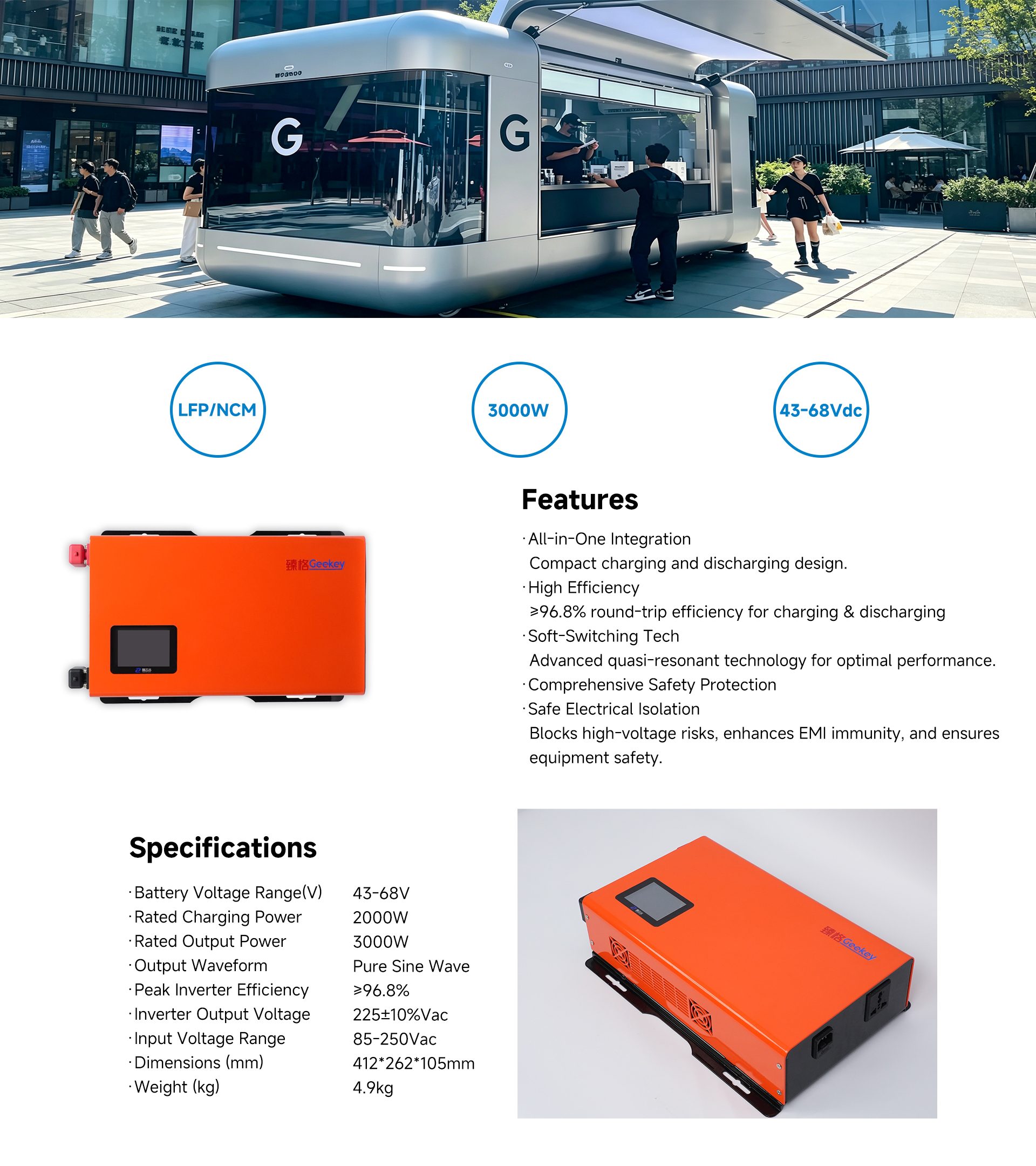

Key Specifications:
Battery voltage: 43–68VDC
Battery types: Ternary lithium, LiFePO₄, lead-acid
Communication interface: CAN bus, PIN2.45-4P connector
Dimensions: 412.0 × 262.0 × 105.0mm
Net weight: 4850g
Output waveform: Pure sine wave
Output voltage range: 225V±10%VAC
Frequency: 50Hz
Rated power: 3200W
Charging input voltage range: 85–250VAC
Constant current output: 31A (adjustable)
Constant voltage output: 67.2V±0.6V (adjustable)
Charging power: 2000W
Applications:
Suitable for outdoor RVs, portable mobile power stations, and emergency backup during power outages — such as mobile food trucks and street vending vehicles. Compatible with the vast majority of appliances on the market, providing stable and reliable power supply.
